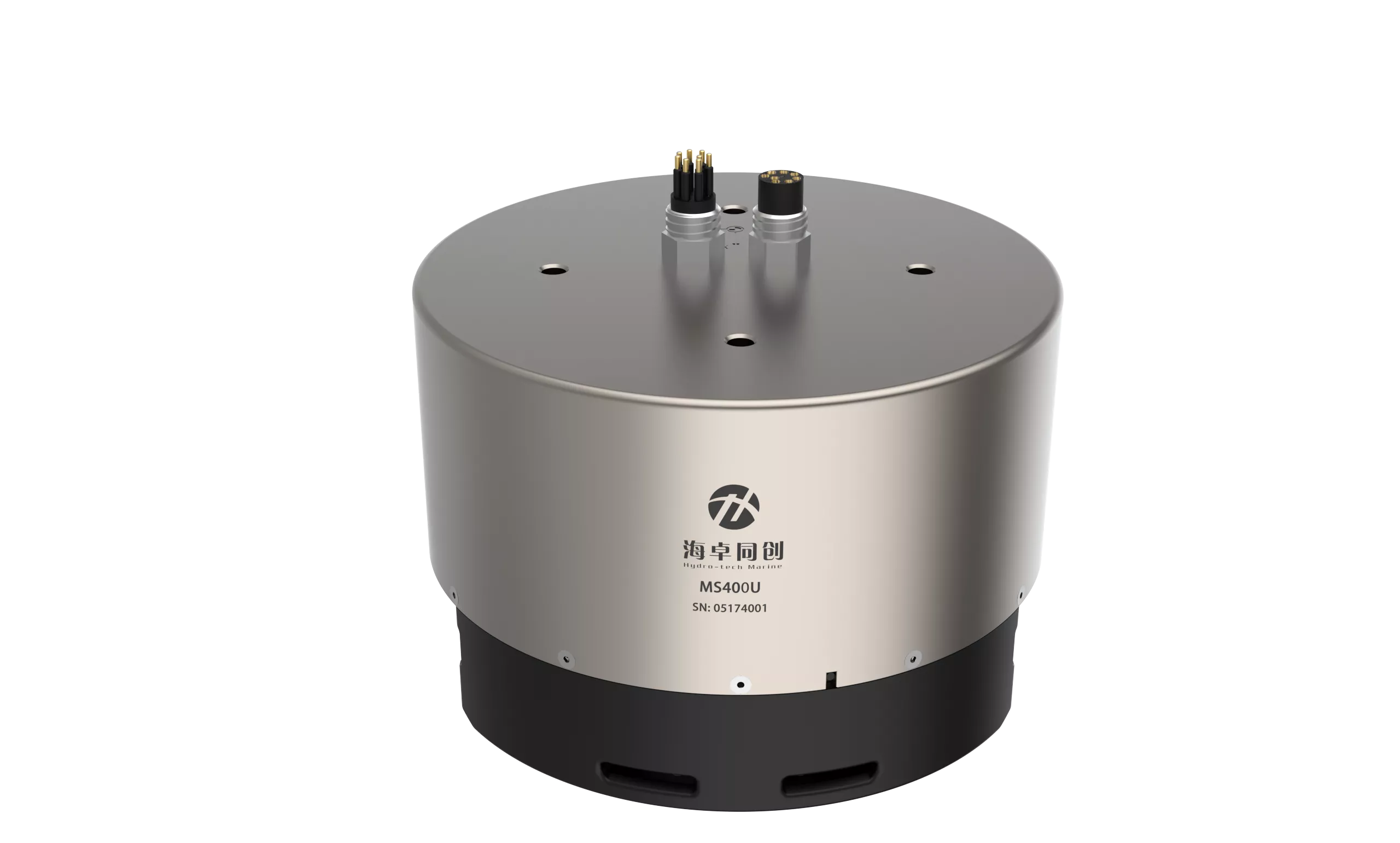

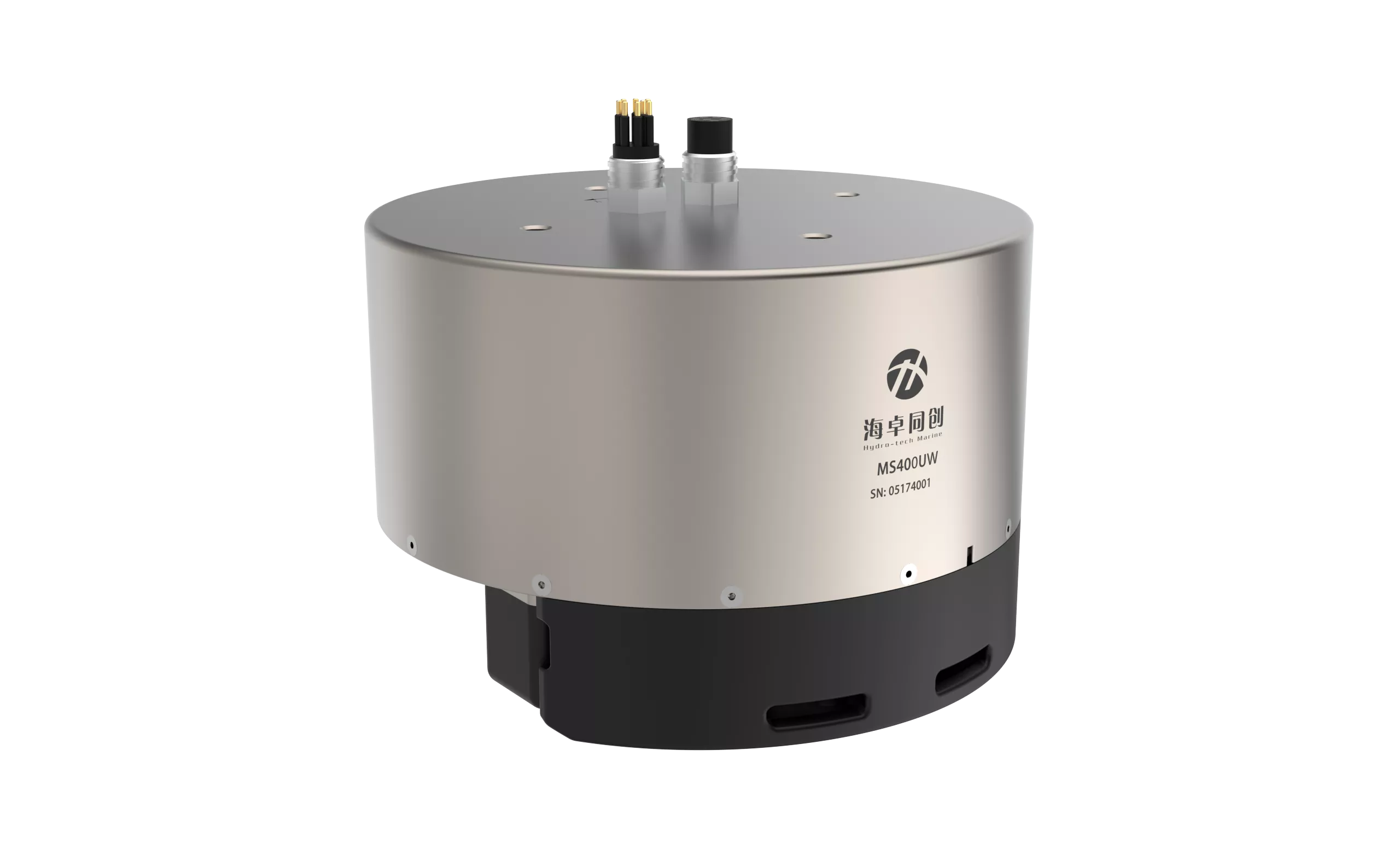

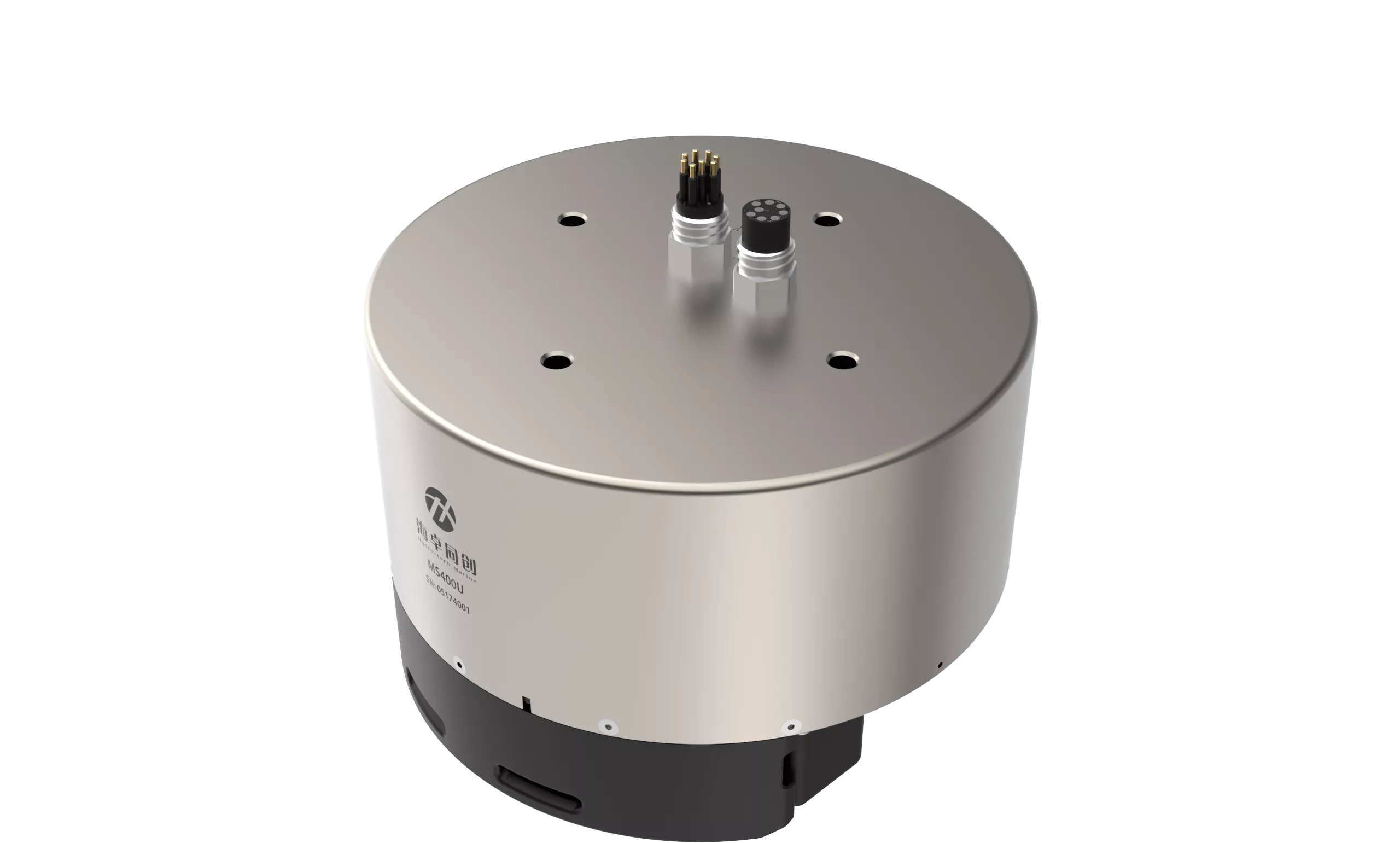

MS400U

All-in-one Multibeam Echo Sounder


Design for Unmanned Platform | Calibration-free Measurement | Ruggedized for Harsh Environment

MS400U is an compact multi-beam echosounder specially designed for the integration of small USV or other unmanned platforms. It has buit-in surface sound velocity sensor and been installed with attitude & heading measuring sensor. It has excellent performance, such as small size, light weight and low power consumption. Its functions and performance is perfect for any hydrographic surveying requirements. It can be easily integrated into other unmanned platform. Our engineers are always standby to provide the technical consultance needed.

Features

# High performance：Beam Angel 1° x 2° | Number of Beams 512 | Resolution 0.75cm | IHO Standard

# Small Size：φ220mm × 181mm or customizable (Contact us to tailor made for your unmanned vehicle)

# Light Weight：Total system is weighted around 10kg (Tansducer 7.5kg / Deck Unit 2.5kg) | Easy to carry

# Integration：Built-in good performance INS of POSMV SurfMaster to get high precision result

# Suitable for ROV/AUV/USV and apply to underwater terrain surveying, underwater 3D surveying, bridge pier scouring inspection

Specifications
Technical Specifications

Working Frequency

Depth Resolution

400kHz

0.75cm

No. of Beams

Working Modes

512

Equiangular or Equidistance

Vertical Receiving Beam Width

Parallel Trasmiting Beam Width

1°

2°

Max. Ping Rate

Signal Type

60kHz

CW/Chirp

Swtch Coverage

Pulse Width

143°

15μs ~ 8ms

Sounding Range

Max. Working Depth

0.2~150m

50m
Physical Specifications

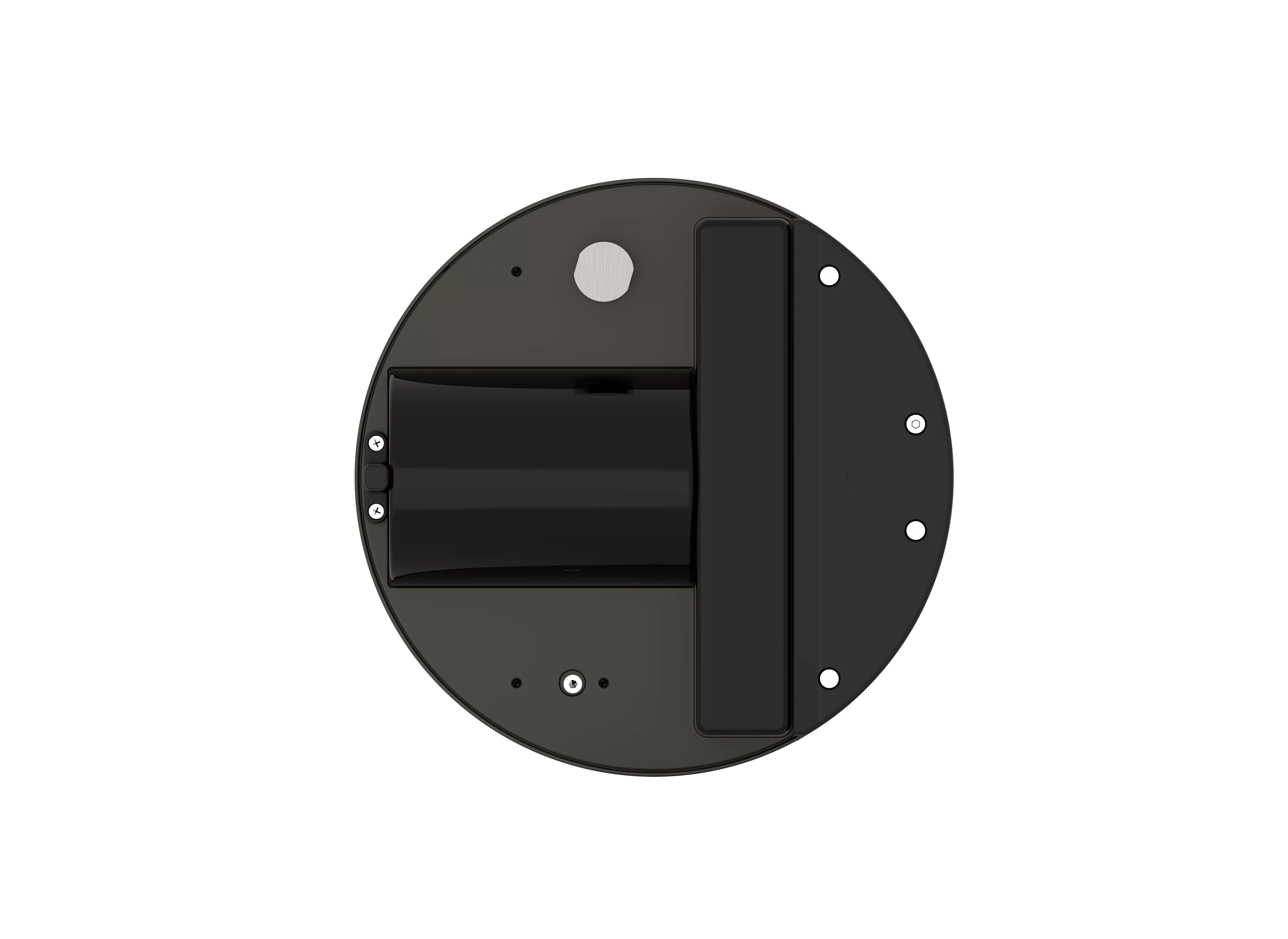

Transducer Size

Transducer Weight

φ220mm×181mm

7.5kg (In the air)

Working Temperature

Storage Temperature

-2° ~ 40℃

-20℃ ~ 55℃

Power Supply

Power Consumption

Deck Unit Weight

Deck Unit Size

Deck Cable Length

DC10V-32V/AC110V-240V

80W

2.5kg

200mm×145mm×107mm

1.5m (or Customized)

All spec. above is subject to change without notice.

Solutions
  • Underwater Terrain Surveying
    Underwater Terrain Surveying
  • Unmanned Vehicle Solution
    Unmanned Vehicle Solution
  • Wind Power Maintenance
    Wind Power Maintenance
  • Emergency Rescue Solution
    Emergency Rescue Solution

Carries

Unmanned Platform
Speed Boat
Hydrogrphic Ship
Fishing Boat
Oaring Boat
